Yamaha Tenere 700 - CI Navigation Mount

The CI Tenere 700 GPS Bracket is an extremely rigid platform for mounting a larger and navigation device, such as the DMD Units. It will also work with Garmin devices, mobile phones and most Android tablets.

• Stabilizes whole motorcycle mask and windscreen.
• This bracket has a range of angle adjustments to suit your riding style (sitting or standing on the foot pegs).
• Features 2 positions of height adjustment.
• Especially designed for off-road use.
• The Carpe Iter Tenere 700 GPS Bracket is compatible with all Tenere 700 models, from 2019 to 2024. It does not fit 2025 Tenere 700 onwards.
• For larger screen devices it is highly recommended to also install this: Windshield Adjuster
• The Windshield adjuster will allow you to raise the stock windscreen to protect the device installed on the Carpe Iter T7 GPS Bracket from the elements and offer some extra protection in the event of a crash or fall.

The Mounting kit type depends on the crash bars you have installed (or are planning to install) on your motorbike.

There are generally 2 types of crash-bars. One type mounts onto the motorcycle frame (such as the stock Yamaha T7 (not World raid) crash-bars or SW-Motech World Raid crash-bars). The other type mounts directly onto the motorcycle frame and steering stem (such as the Outback Motortek style crash-bars).

The CI T700 GPS Bracket should be installed in the location, which is NOT occupied by your crash-bars.

• Choose the Frame Mount Kit if you have the Side Mount or Lower Crash Bars

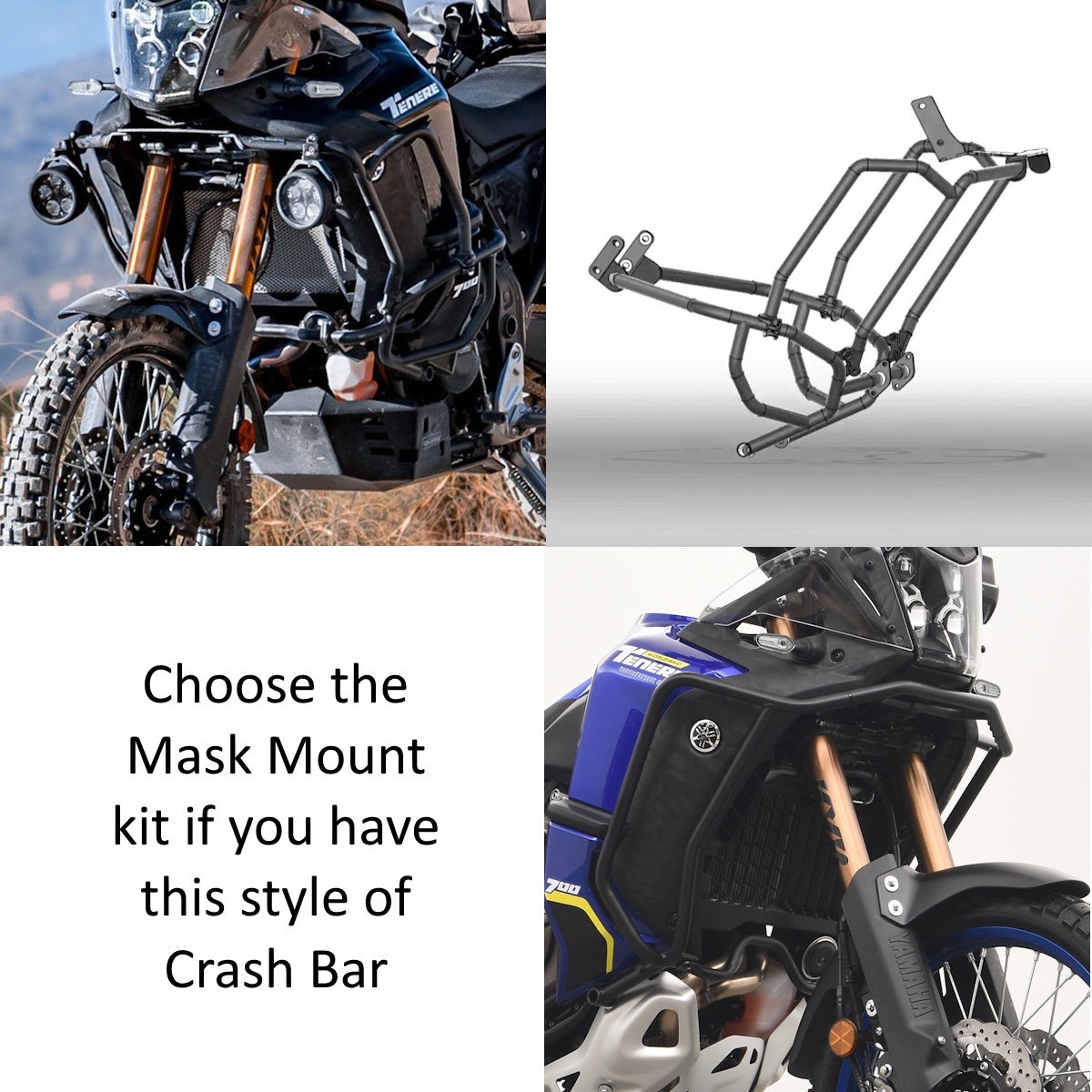

• Choose the Mask Mount Kit if you have the Wrap around Crash Bars like Outback Motortek or Genuine Yamaha World Raid Crash Bars.

The kit includes 4 x stainless steel M5x14mm screws for installation of the device mount.

The GPS plate installation slots are compatible with 30x38mm AMPS hole pattern in both landscape and portrait orientation.

The GPS plate has 3 sets of installation slots – choose the slot that best fits the size of the device being installed.

NOTE: The installed device should not significantly obstruct the view of the motorcycle dashboard and at the same time there should be some clearance from the windscreen to prevent the windscreen rubbing against the installed device.

The GPS plate can accept M4 screws (e.g. Garmin devices and their holders usually use M4 screws), but you should use a washer to make sure that the screw head will not slip through the slots.
