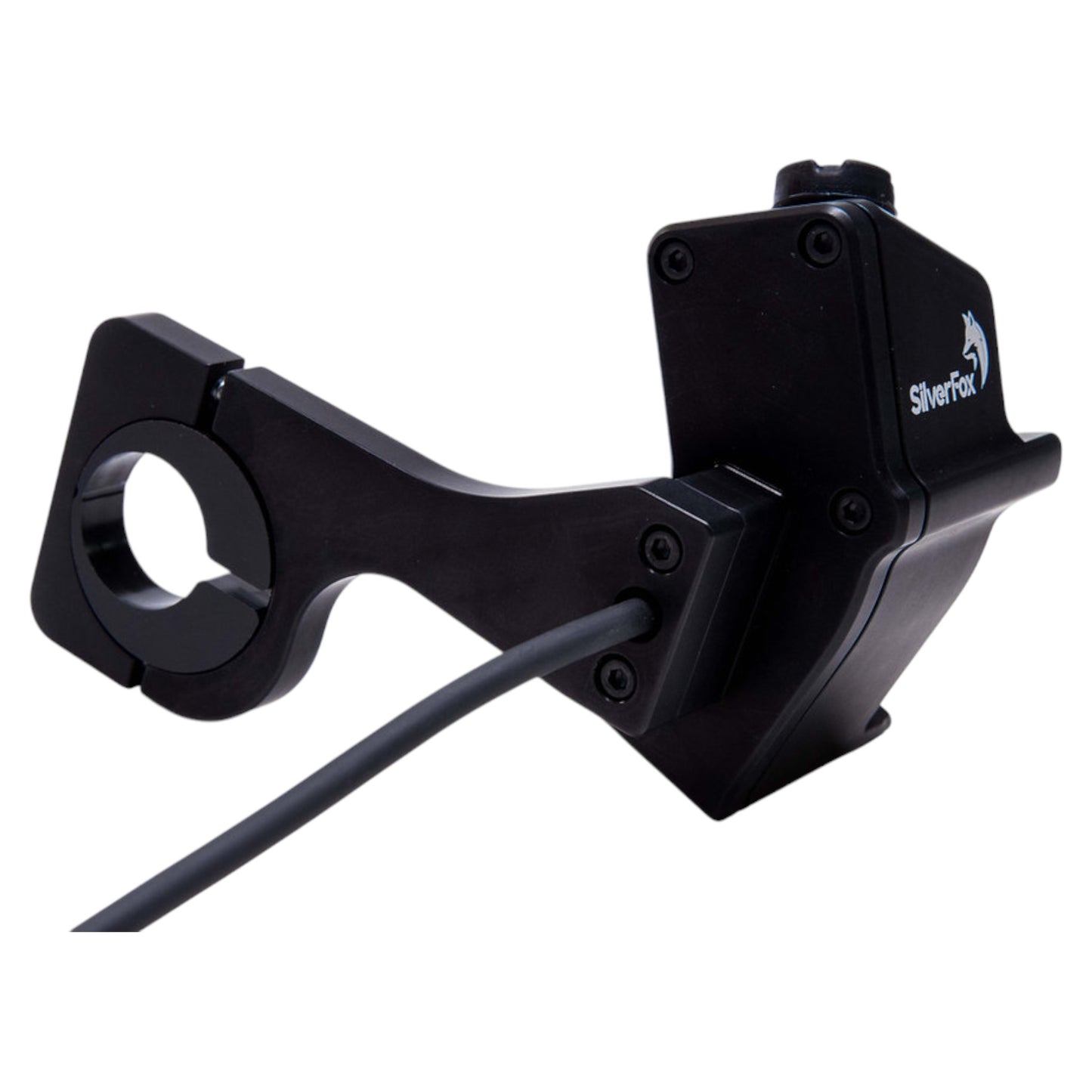

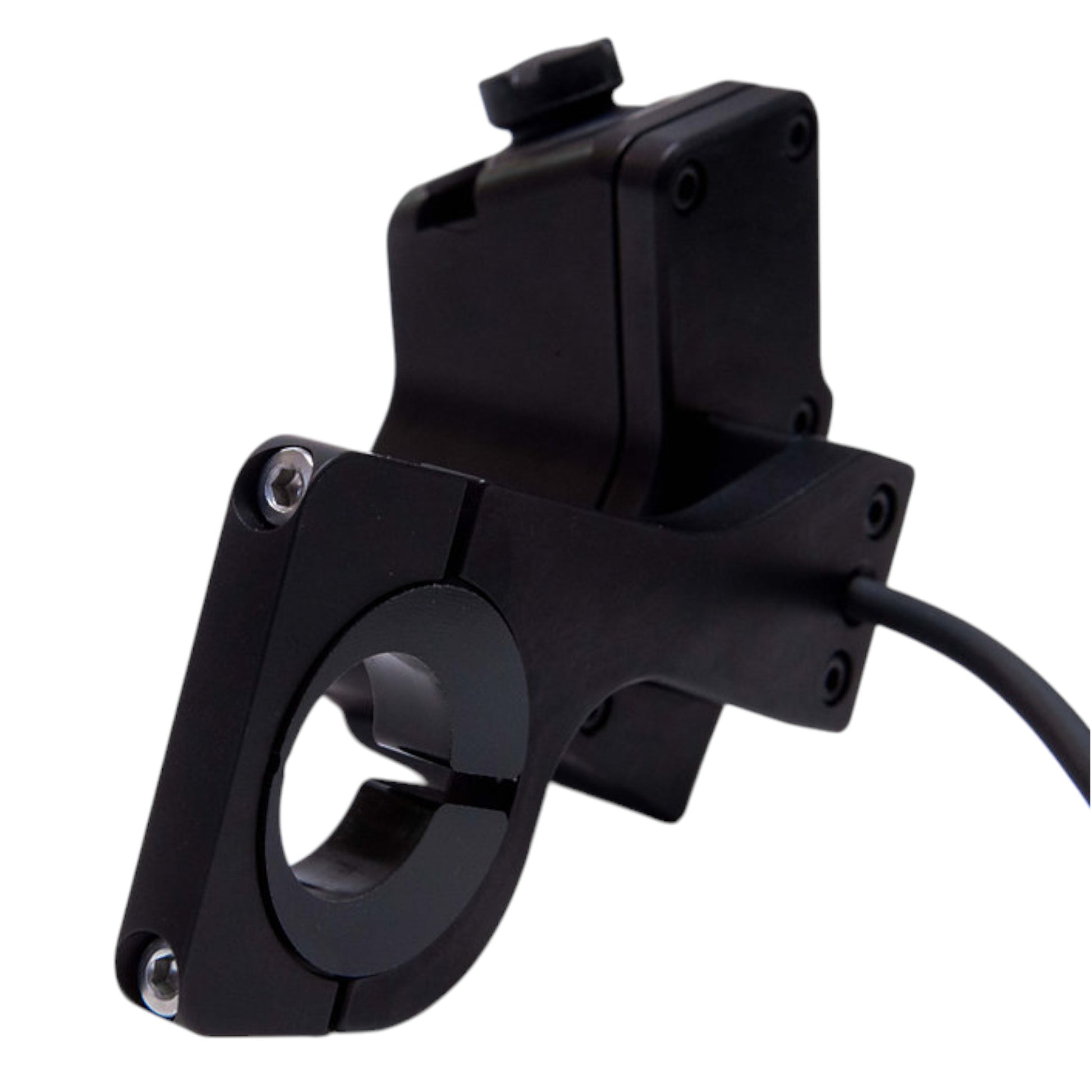

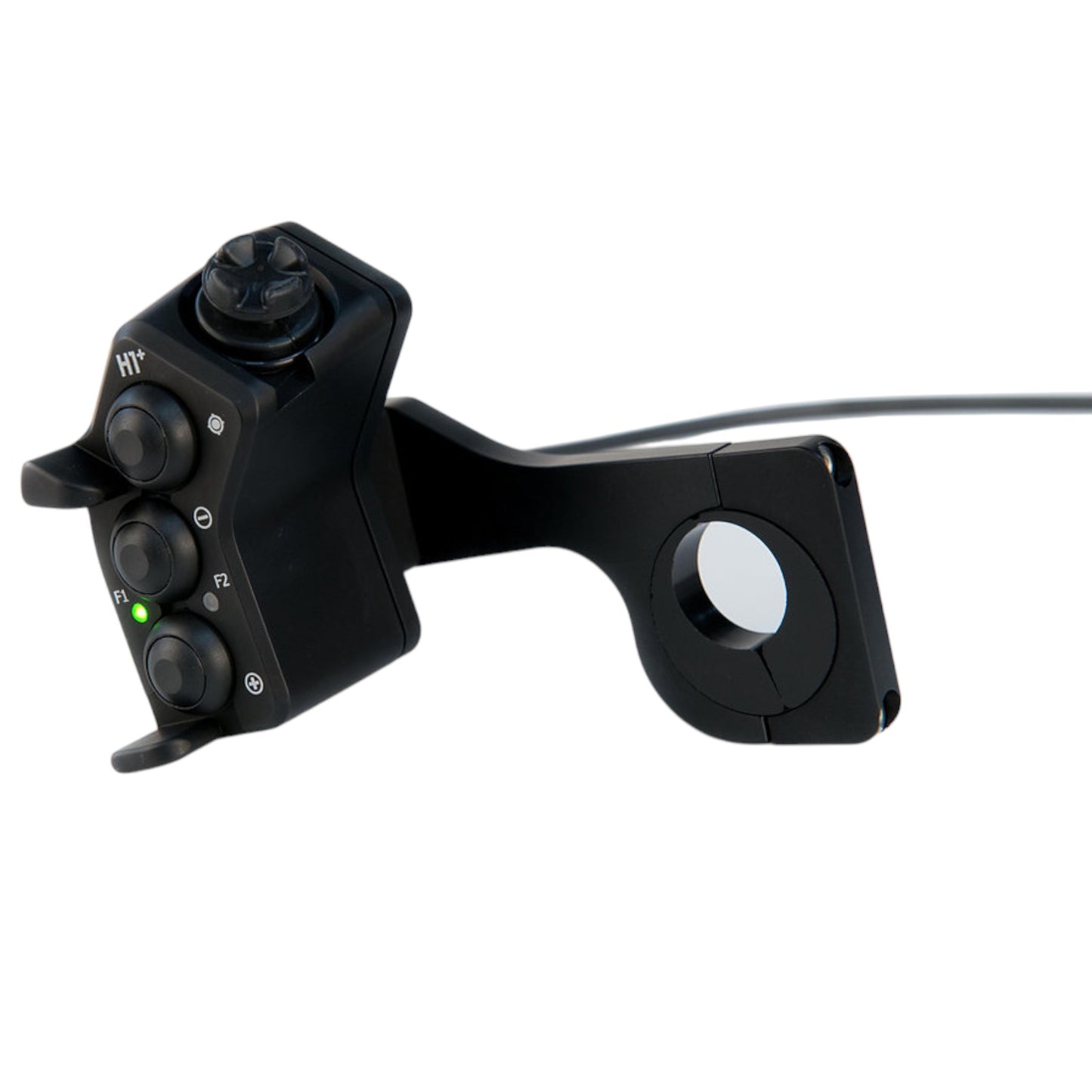

SilverFox H1+ Navigation Handlebar Controller

Perfect match for motorcycles where there is limited real estate on the Handlebars.

It can be connected by Bluetooth or Cable (cable connection is only compatible with DMD-T865 and DMD-T865X - no extra power connection required).

• New narrow design

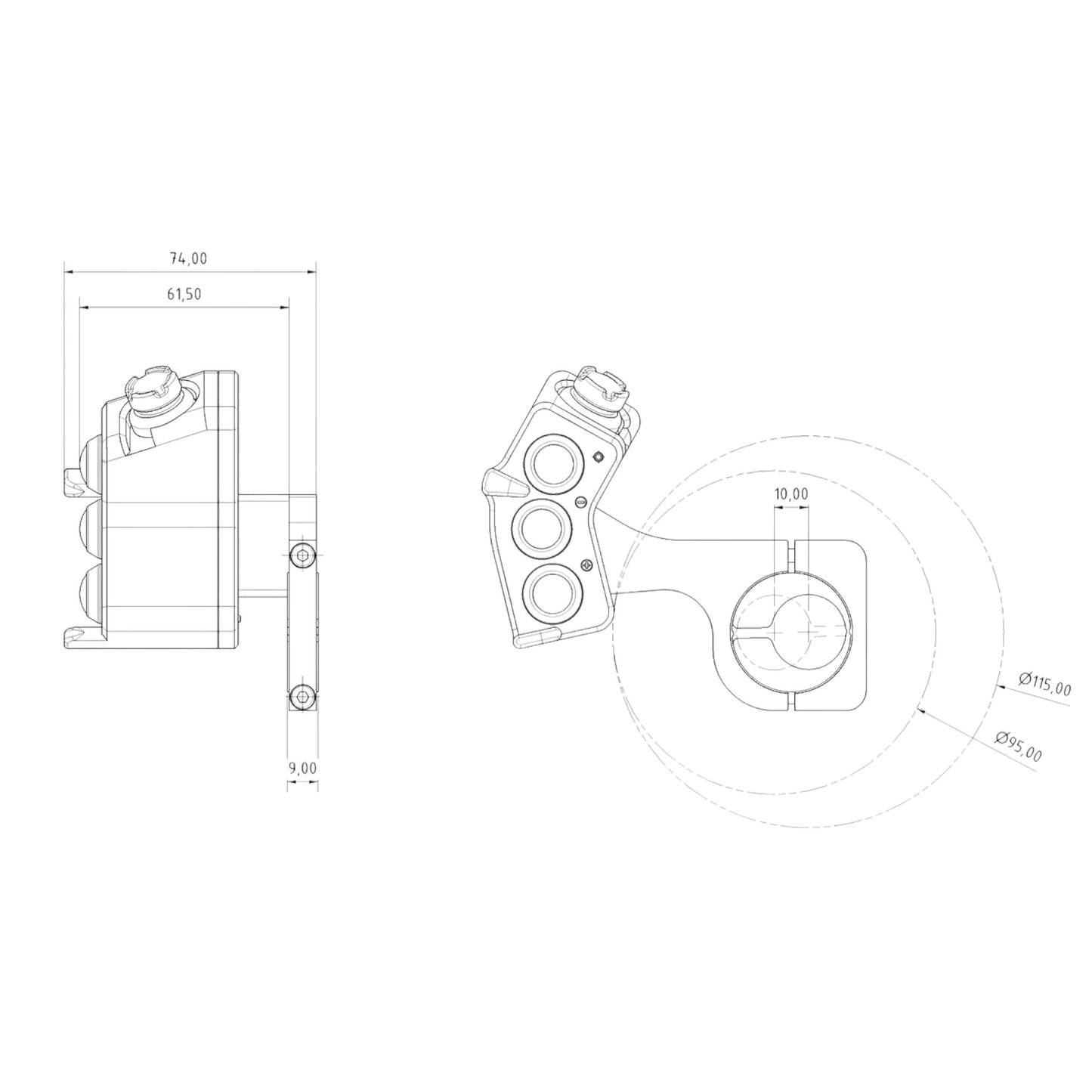

• Adjustable length, +/- 5 mm (see illustration)
• 3 push buttons and 4 way joystick switch (IP67)
• Wide range, 5-24VDC for input power

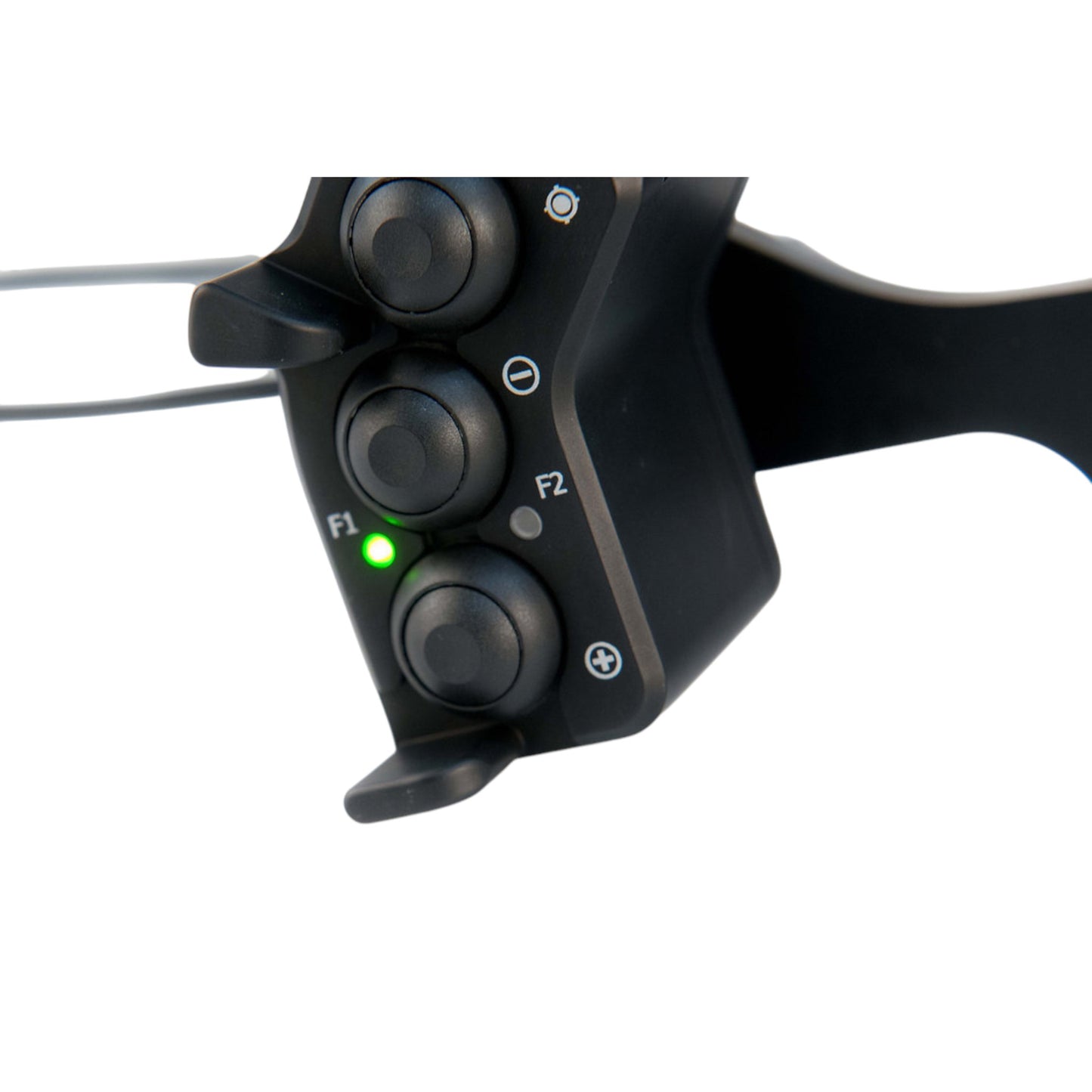

• Indicator LEDs
• Rugged hard anodized surface
• IP67 dust and water proof ( = in water max. 30 min/1m deep)

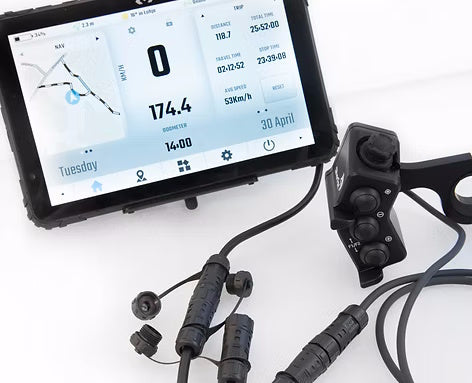

• Bluetooth and wired connection for DMD-T865 and DMD-T865X
• M12 Connector included to Hardwire direct to power source
• Made in Finland

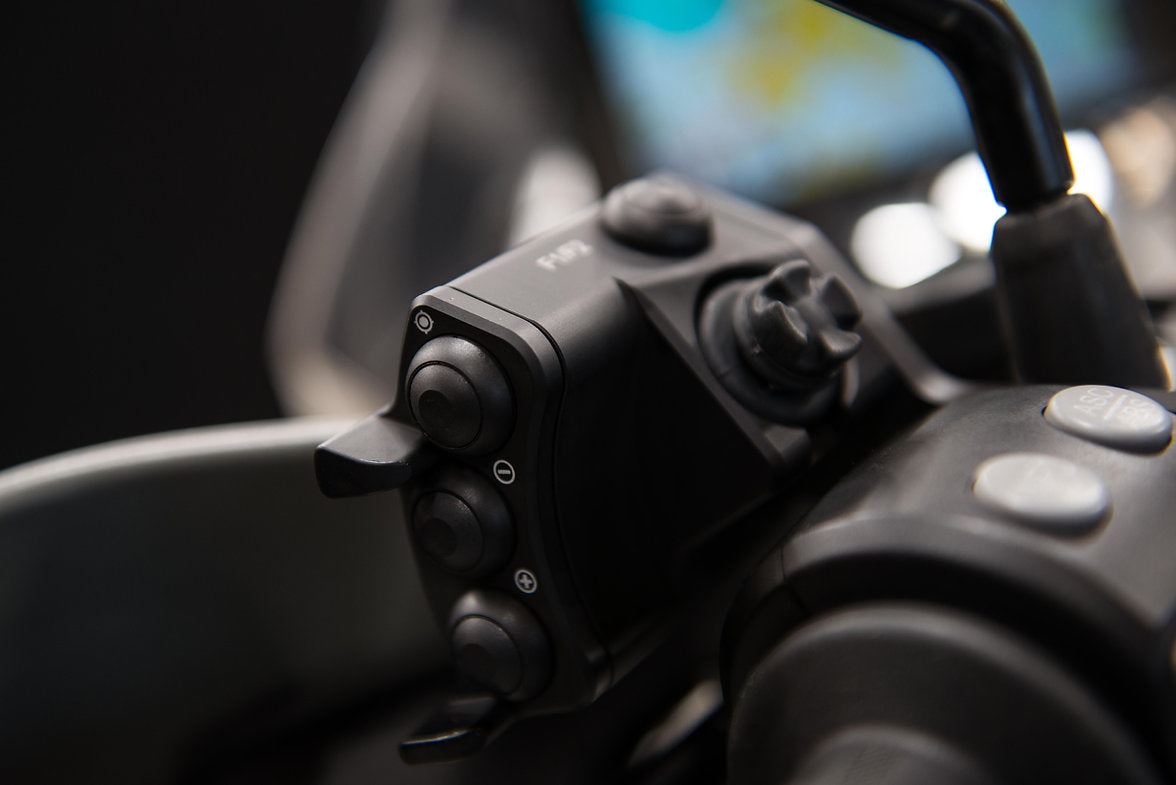

This unit can be installed on various bikes or ATVs and fits handlebars with a diameter of 22 mm (suits standard and tapered handlebars). The design allows space for buttons on the front side of the original switchblock. With the included length-adjustment ring, it can be mounted and fine-tuned to fit a wide variety of handlebars. It supports both Bluetooth and wired connections for DMD-T865 Navigation tablets

SilverFox H1/H1+ Introduction Video:

SilverFox H1 Controller Functions:

Silverfox H1 Installation Video:
